Load Station Keypad

N103597-UN-13MAY13

N103596-UN-13MAY13

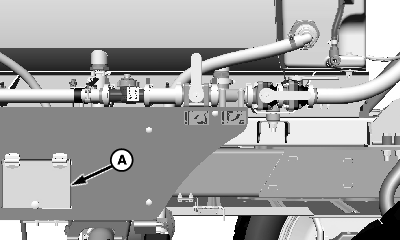

A - Cover

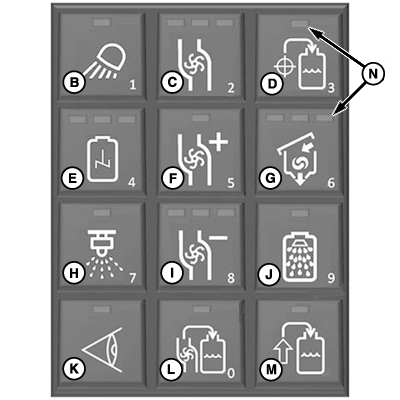

B - Load Station Light Button

C - Solution Pump ON/OFF Button

D - Target Fill Button

E - Agitation Button

F - Pump Speed Increase Button

G - Eductor Button

H - Spray ON/OFF Button

I - Pump Speed Decrease Button

J - Rinse Button

K - Nozzle Check Button

L - Pull-On Fill Button

M - Push-On Fill Button

N - Indicator

Keypad button functions are as follows:

• Load Station Light Button (B)—turns load station light ON/OFF
• Solution Pump ON/OFF Button (C)—turns solution pump ON/OFF (Solution pump runs at 50 percent speed until adjusted)
• Target Fill Button (D)—operator can load tank to a pre-specified level automatically. Desired level must be set using the GS3 display.
• Agitation Button (E)—turns agitation ON/OFF (Agitation volume must be set from GS3 display in cab)
• Pump Speed Increase Button (F)—increases pump speed at set intervals per button push until maximum pump speed is achieved.
• Eductor Button (G)—turns eductor ON/OFF (Default eductor volume must be set from GS3 display in cab)
• Spray ON/OFF Button (H)—turns enabled spray sections ON/OFF (Spray sections must be enabled or disabled using switches on CommandARM Side Console)
• Pump Speed Decrease Button (I)—decreases pump speed at set intervals per button push until minimum pump speed is achieved
• Rinse Button (J)—begins rinse procedure, full system or boom rinse can be selected using the micro display.
• Nozzle Check Button (K)—allows operator to perform nozzle check (See Perform Nozzle Check in this section)
• Pull-on Fill Button (L)—pressing button begins fill process, press button again to stop fill process
• Push-on Fill Button (M)—press button to begin filling with nurse pump, press button again when fill is complete

Indicators (N) display the status (ON/OFF) of the function controlled by that button. Indicator light ON indicates the function is ON. Indicators can also display at what setting the function is operating.
