Machine Informational Decals

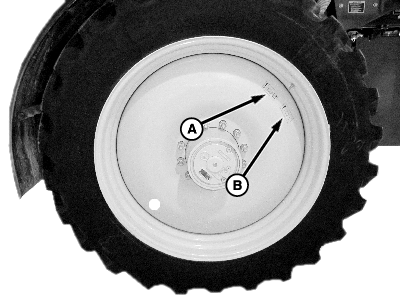

Tire Decals
N99103-UN-17SEP12
A - Tire Pressure
B - Wheel Hardware Torque
Decal A:
IMPORTANT: Maintain proper inflation pressure to prolong tire life.
Decal B:
IMPORTANT: Torque each bolt to 700 Nm (516 lb.-ft.). Retorque after 1 hour and daily until torque is maintained. Repeat operation each time bolts are loosened. Check torque every 100 hours of operation thereafter.
|
R4030 Recommended Tire Inflation Pressure |
|||||
|---|---|---|---|---|---|
|
Tire Size |
Wet System |
Dry System |
|||
|
27.4 /30.4 M (90/100 ft.) without Direct Injection (DI) |
27.4 /30.4 M (90/100 ft.) with Direct Injection |
36.5 M (120 ft.) without DI |
36.5 M (120 ft.) with DI |
200 cubic foot Spreader |
|
|
IF320/90R50 - 161D1 |
441 kPa (64 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
|
VF380/90R46 - 173D |
248 kPa (36 psi) |
283 kPa (41 psi) |
283 kPa (41 psi) |
303 kPa (44 psi) |
248 kPa (36 psi) |
|
IF380/90R46 - 168D |
338 kPa (49 psi) |
379 kPa (55 psi) |
379 kPa (55 psi) |
400 kPa (58 psi) |
338 kPa (49 psi) |
|
380/90R46 - Hi Capacity - 168A8/B |
427 kPa (62 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
462 kPa (67 psi) |
462 kPa (67 psi) |
|
380/90R46 - Standard Capacity - 163A8/B |
427 kPa (62 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
462 kPa (67 psi) |
462 kPa (67 psi) |
|
IF420/80R46 - 167D |
303 kPa (44 psi) |
338 kPa (49 psi) |
338 kPa (49 psi) |
358 kPa (52 psi) |
303 kPa (44 psi) |
|
520/85R38 - 169A8/B |
248 kPa (36 psi) |
269 kPa (39 psi) |
269 kPa (39 psi) |
289 kPa (42 psi) |
276 kPa (40 psi) |
|
620/70R38 - 170A8/B |
207 kPa (30 psi) |
221 kPa (32 psi) |
221 kPa (32 psi) |
241 kPa (35 psi) |
241 kPa (35 psi) |
|
R4038 Recommended Tire Inflation Pressure |
|||||
|---|---|---|---|---|---|
|
Tire Size |
Wet System |
Dry System |
|||
|
27.4 /30.4 M (90/100 ft.) without Direct Injection (DI) |
27.4 /30.4 M (90/100 ft.) with Direct Injection |
36.5 M (120 ft.) without DI |
36.5 M (120 ft.) with DI |
200 cubic foot Spreader |
|
|
VF380/90R46 -173D |
317 kPa (46 psi) |
338 kPa (49 psi) |
338 kPa (49 psi) |
358 kPa (52 psi) |
248 kPa (36 psi) |
|
IF380/90R46 - 168D |
400 kPa (58 psi) |
441 kPa (64 psi) |
441 kPa (64 psi) |
462 kPa (67 psi) |
338 kPa (49 psi) |
|
IF420/80R46 - 167D |
379 kPa (55 psi) |
400 kPa (58 psi) |
400 kPa (58 psi) |
420 kPa (61 psi) |
303 kPa (44 psi) |
|
520/85R38 - 169A8 / B |
310 kPa (45 psi) |
338 kPa (49 psi) |
338 kPa (49 psi) |
358 kPa (52 psi) |
276 kPa (40 psi) |
|
620/70R38 - 170A8/B |
290 kPa (42 psi) |
310 kPa (45 psi) |
310 kPa (45 psi) |
330 kPa (48 psi) |
241 kPa (35 psi) |

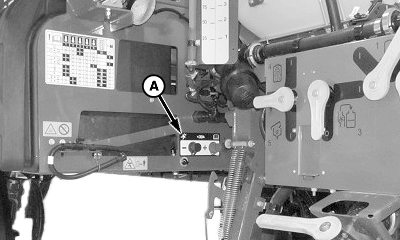

Remote Terminal Decal
N106669-UN-19SEP13
A - Decal
Remote terminals are for auxiliary electrical power. Do not exceed 30 amps.

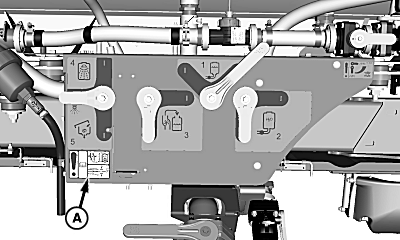

Solution Pump Decal
N106670-UN-19SEP13
A - Decal
IMPORTANT: If loading sprayer using the high flow sprayer pump, a 3 inch hose and fittings should be used or pump seal damage will occur. See operator’s manual.

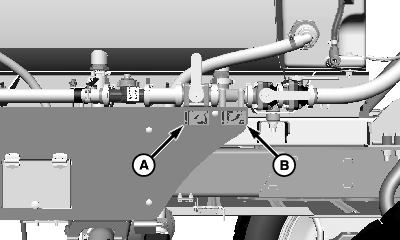

High Flow Shut-off and Orifice Valve Instructional Decals
N102018-UN-11FEB13
A - High Flow Valve Decal
B - Orifice Valve Decal
Decal A:
IMPORTANT: Close valve when solution flow rate is 380 L/m (100 gpm.) or less.
Decal B:
IMPORTANT: Close valve when solution flow rate is 100 L/m (26 gpm.) or less.
Front Fill Switch Decal
N99101-UN-16MAY13
A - Decal
Pull-On Position: Solution pump ON to load solution.
ON Position: Front fill isolation valve open.
OFF Position: Front fill isolation valve closed.

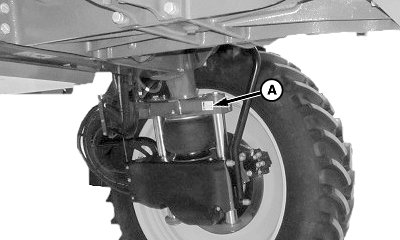

Suspension Lubrication Decal
N106671-UN-19SEP13
A - Decal
Decal A:
IMPORTANT: Use only John Deere SD Poly Urea grease. Use of other grease can result in premature wear of the suspension components.

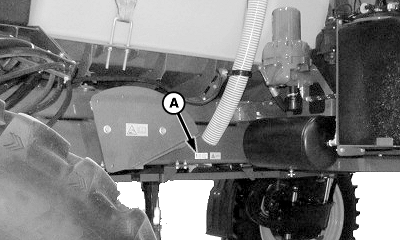

Air Tank Decal
N106672-UN-19SEP13
A - Decal
Decal A:
IMPORTANT: Drain moisture from air tank daily.

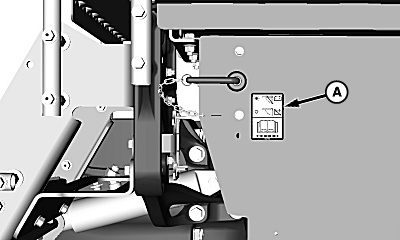

Battery Disconnect Decal
N106673-UN-19SEP13
A - Decal
Decal A:
IMPORTANT: After light turns off, turn handle counterclockwise to disconnect battery.

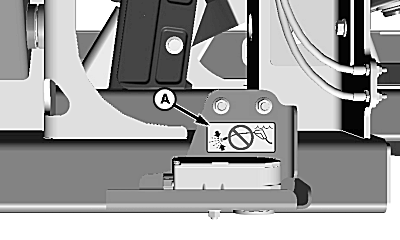

Component Wash Decal
N105926-UN-22AUG13
A - Decal
Decal A:
IMPORTANT: Do not pressure wash these components. Use normal water pressure less then 50 psi (345 kPa).

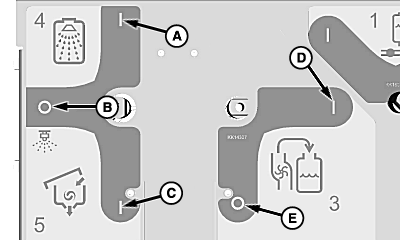

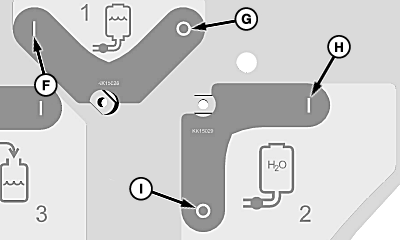

Manual Load Station Decals
N106863-UN-24SEP13
N106864-UN-24SEP13
A - Rinse Position
B - Spray Position
C - Educt Position
D - Load with Sprayer Pump Position
E - Spray or Load with Nurse Pump Position
F - Spray or Load with Nurse Pump Position
G - Load with Sprayer Pump Position
H - Pull From Rinse Tank Position
I - Closed Position
|
1 Full condition
may exceed recommended load or speed for tire.
|
CS12167,0000448-19-20130925 |
