Operate Rinse System (Rinse Solution Pump, Boom, and Flowmeter Only)

1. CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Use rinse system in a area where people, animals, vegetation and water supply etc. cannot be contaminated.

   NOTE: To rinse pump, boom, and flowmeter only, perform the following procedure.

   During a boom rinse cycle the pump bleed and air bleed lines will add some fresh water to the solution tank. This could result in the product being diluted and/or extra product in the tank.


   N106859-UN-24SEP13


   N94868-UN-21SEP11

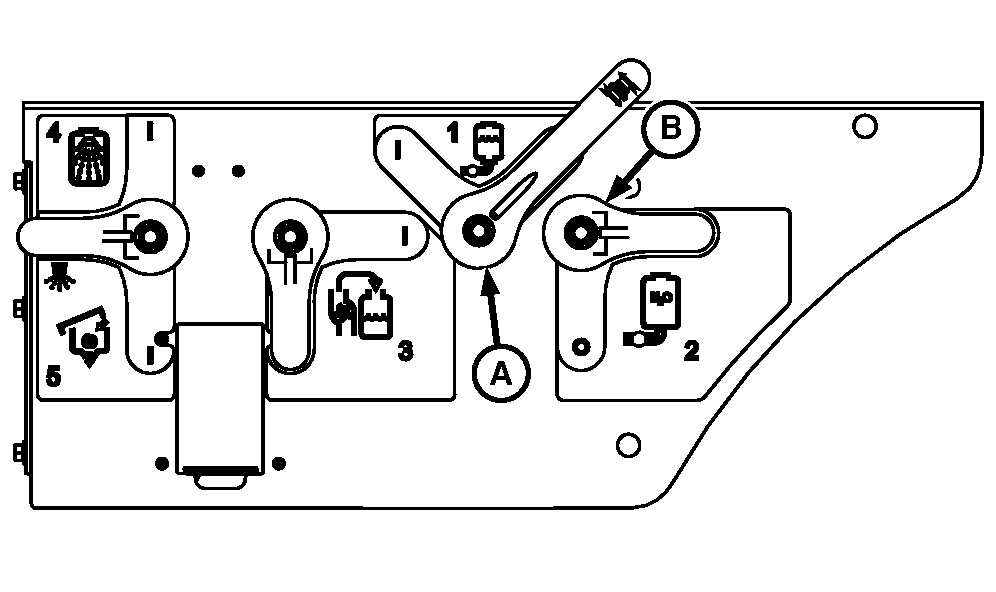

   A - Solution Tank Sump Valve

   B - Rinse Tank Sump Valve

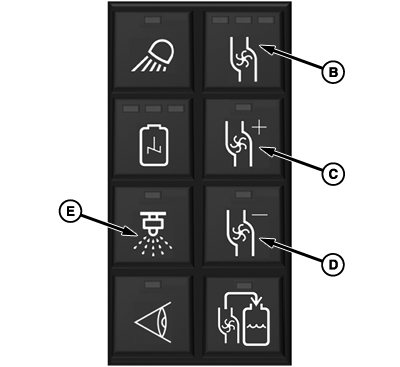

   C - Pump On/Off Button

   D - Pump Speed Increase Button

   E - Pump Speed Decrease Button

   F - Master Spray On Button

   Unfold boom.

---




2. Close solution tank sump valve (A).

3. Open rinse tank sump valve (B).

4. Press pump on/off button (C) on keypad.

5. Adjust pump speed if desired using pump speed increase button (D) and pump speed decrease button (E).

6. Press master spray on button (F) to rinse boom with fresh clean rinse water.

7. Press pump on/off button to stop pump.

8. Close rinse tank sump valve.
