Park Brake Switch

IMPORTANT:

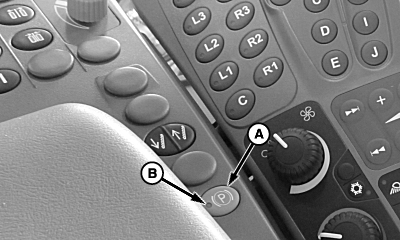

N102008
N102008-UN-11FEB13

A - Park Brake Switch

B - Indicator Light

Pressing the park brake switch will fully apply park brake at any vehicle speed. Engaging park brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the secondary brake. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)

If park brake switch is engaged it must be manually disengaged before moving machine. Park brakes will not automatically release when park brake switch has been engaged.

NOTE: Park brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when multi function control handle is in park position.

Press park brake switch (A) to engage park brake. Press switch again to disengage park brake. Indicator light (B) will light when park brake is engaged.
