Fill Solution Tank with Sprayer Pump

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals, exposure to hazardous materials could poison and injure you.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), verify Quik-Fill valve is closed.

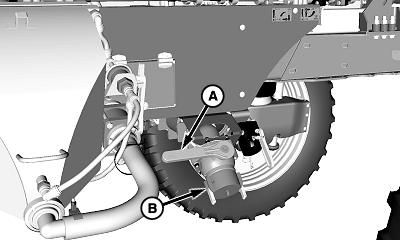

   N99947-UN-11JUL13

   Side Quik-Fill

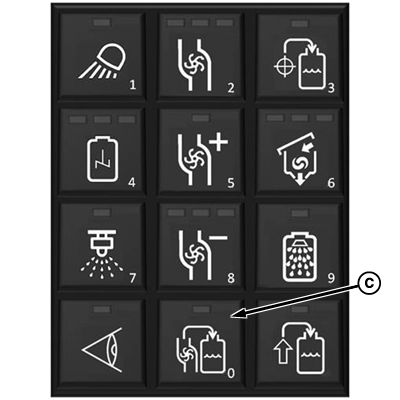

   N107248-UN-07OCT13

   A - Quik-Fill Valve

   B - Cap

   C - Pull-On Fill Button

   Verify Quik-Fill valve (A) is closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers, and open nurse tank valve.

4. Open Quik-Fill valve, press pull-on button (C).

5. NOTE: Pump is self-priming and will shut down if priming is not attained within the required time.

   Auto fill shuts down when upper tank level switches are reached.

   After solution tank has filled to desired level, close nurse tank and Quik-Fill valves.

6. Remove fill hose from Quik-Fill adapter and replace cap.
