Connect Power Washer

N110133
N110133-UN-07FEB14

N110131
N110131-UN-05FEB14

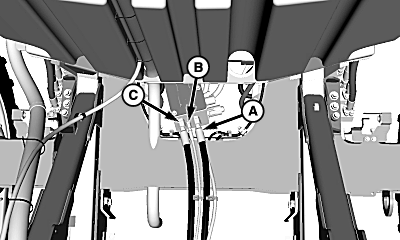

A - BM Port (Pressure)

B - AL Port (Load Sense)

C - BMT Port (Return)

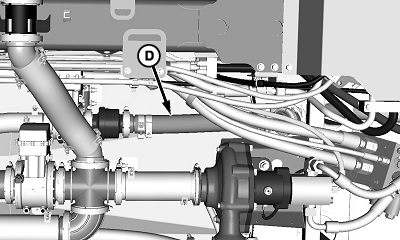

D - Rinse Tank Sump Line

The following shows hydraulic and clean water connection points for installing a power washer.

  1. NOTE: Port labels are stamped in proportional valve.

    Proportional valve is located near the rear axle of machine.

    Connect to hydraulic pressure using the necessary fittings at BM port (A).

  2. Tee power washer pressure line to AL load sense port (B).

  3. Connect to hydraulic return using the necessary fittings at BMT port (C).

  4. Connect clean water supply line to machine rinse tank sump line (D) using necessary fittings.

  5. Test run after install is complete and verify no leaks are present.

CS12167,000057B-19-20140207
