Transport Lock Switch

N97493-UN-17SEP12

N102007-UN-22MAY13

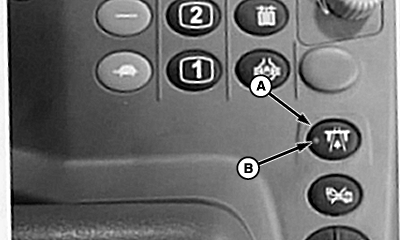

A - Transport Lock Switch

B - Indicator Light

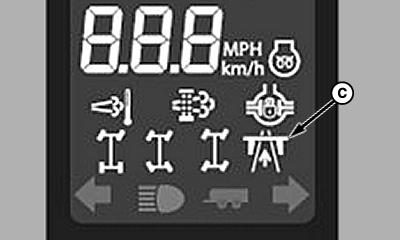

C - Primary Display Unit Indicator

The Transport Lock should be engaged when traveling on the road. To engage, press and hold the transport lock switch (A) for 2 seconds. Primary display unit indicator (C) will light when transport lock is engaged. The transport lock indicator light (B) will illuminate and the following functions will be disabled:

• Master ON/OFF switch
• Tread adjustment
• Hydraulic boom movements (folding/unfolding)

Press and hold switch for 2 seconds to turn Transport Lock off.
