Turn Flow Rate Alarm On/Off

N101900
N101900-UN-08MAY13

N74752
N74752-UN-17JAN07

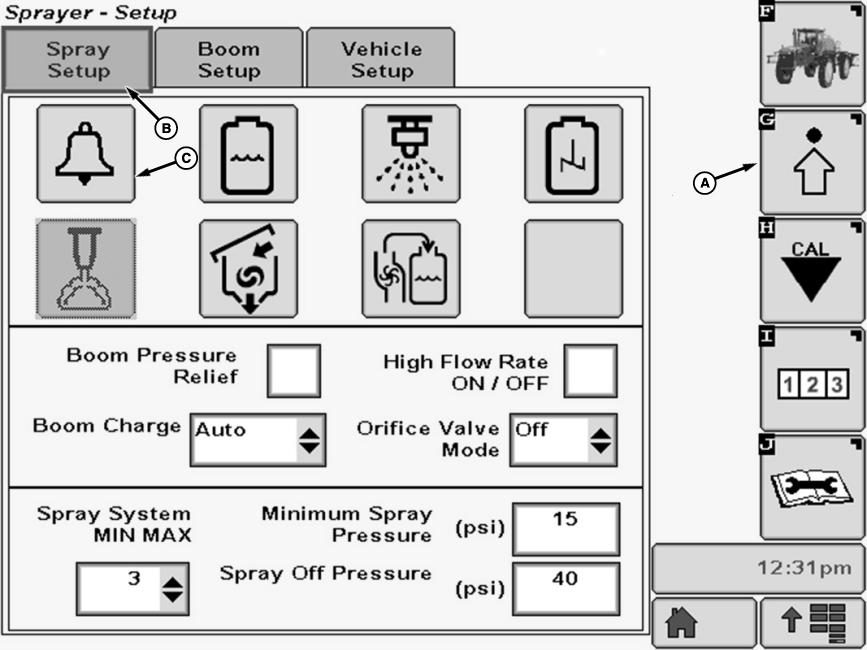

A - Setup Softkey

B - Spray Setup Tab

C - Alarm Setup Button

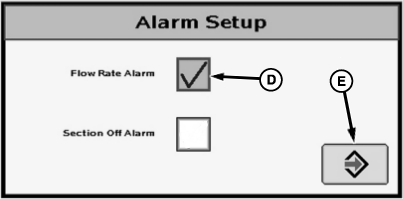

D - Check Box

E - Enter Button

The flow rate alarm tells the operator when the sprayer applies more or less than 20% of the target application for 6 continuous seconds. LOW SOLUTION FLOW or HIGH SOLUTION FLOW also appears on the Sprayer Main Page.

To activate or deactivate alarm:

  1. Select the Setup softkey (A) to view the setup menu.

  2. Select the Spray Setup tab (B).

  3. Press Alarm Setup button (C). The Alarm Setup screen will appear.

  4. NOTE: A check mark in the box indicates that Flow Rate Alarm is activated.

    Select check box (D) next to Flow Rate Alarm and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.

  5. Select the enter button (E) to return to Spray Setup screen.

OUO6092,00007FF-19-20130611
