Calibrate Boom Fold/Unfold Sensors

N102369-UN-09MAY13

A - Calibration Softkey

B - Boom Calibration Tab

C - Calibration Icon

• Replacing any boom sensor or boom sensor linkage
• Replacing the Spray Rate Controller (SRC)
• Replacing a fold/unfold cylinder that could adjust the sensor linkages

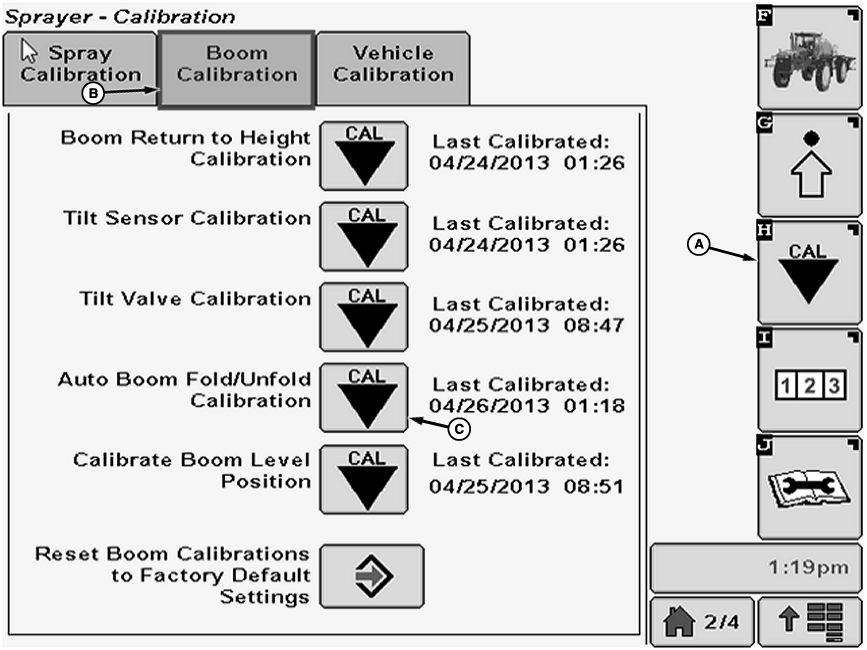

1. Select the Calibration softkey (A) to view the setup menu.

2. Select the Boom Calibration tab (B).

3. Select Calibration icon (C) next to Auto Boom Fold/Unfold Sensors Calibration. Auto Boom Fold/Unfold Sensors Calibration screen will appear.

4.
   N102370-UN-12FEB13

   A - Enter Button

   Start with the boom folded and in the boom rests. Select Enter button (A) to begin calibration

---




5.
   N102371-UN-12FEB13

   A - Enter Button

   Follow instructions on the screen then press the Enter button (A). Use Auto or Manual mode to get every section completely unfolded when asked. (See Boom Folding—27.4, 30.5 and 36.6 m (90, 100 and 120 ft.) Booms in 27.4, 30.5 and 36.6 m (90, 100 and 120 ft.) Booms section of this manual for folding procedures.)

---




6.
   N102372-UN-12FEB13

   A - Cal Icon

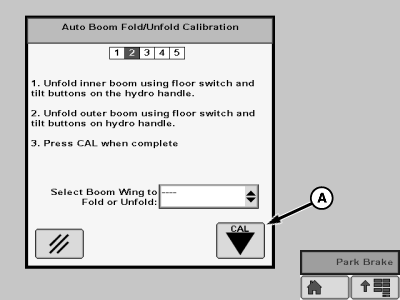

   Follow instructions on the screen then press the Cal icon (A).

---




7.
   N102373-UN-12FEB13

   A - Cal Icon

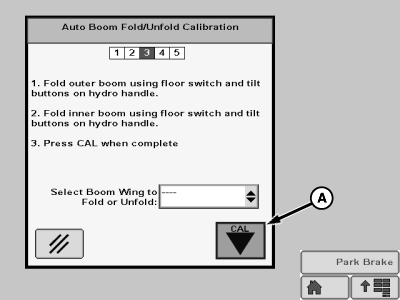

   Follow instructions on the screen then press the Cal icon (A).

---




8. NOTE:


   N102374-UN-12FEB13


   N103861-UN-30MAY13

   A - Cal Icon

   B - Indicator Mark

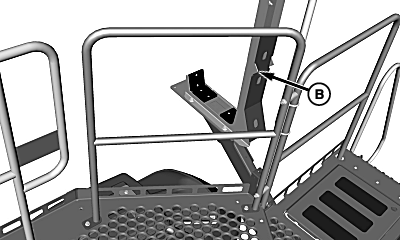

   Indicator mark (B) is located on front boom cradles.

   Follow instructions on the screen then press the Cal icon (A).

---




9.
   N102375-UN-12FEB13

   A - Enter Button

   Press Enter button (A) to save values.

---
