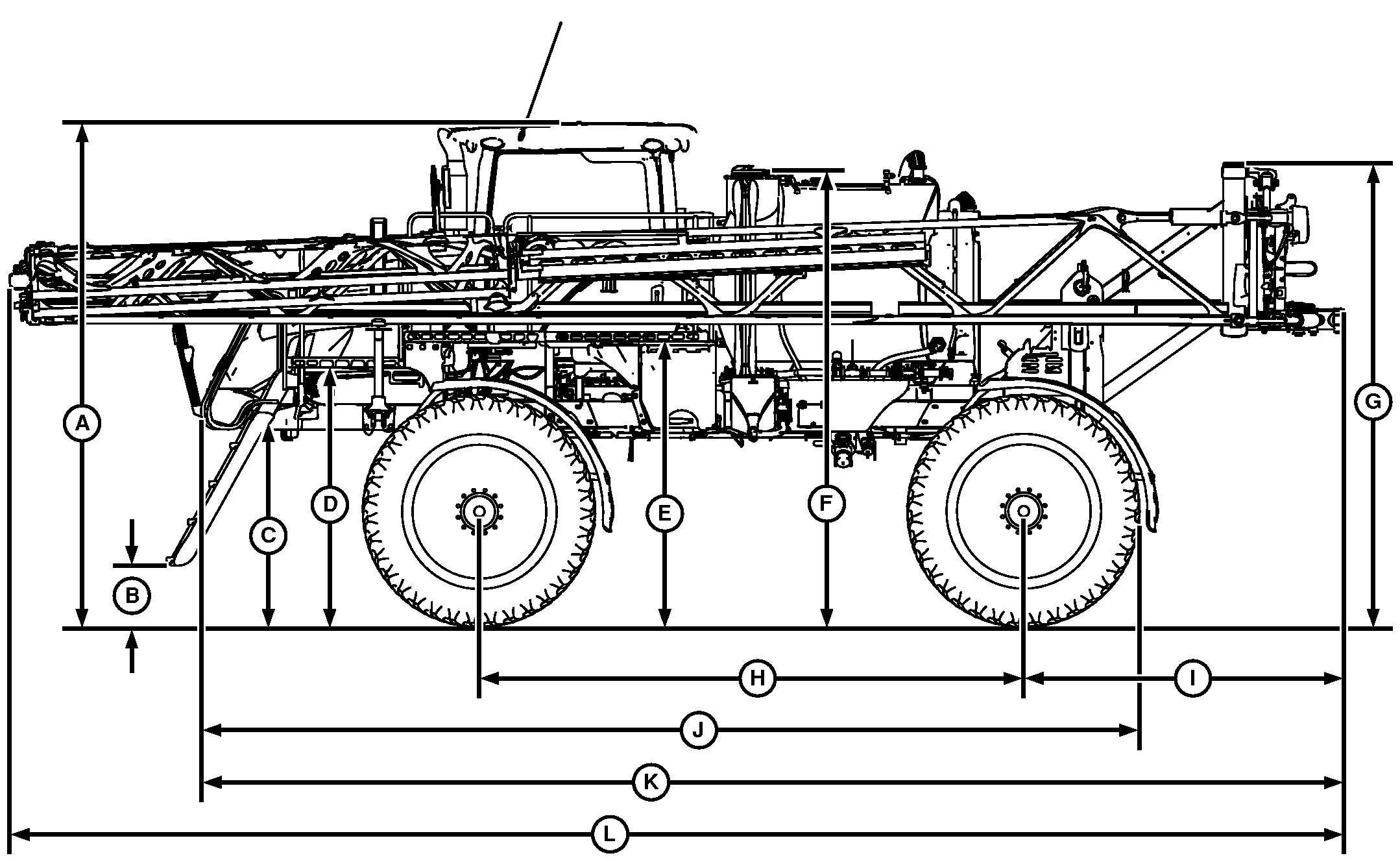

Standard Machine Dimensions

N103396-UN-19APR13

A - Cab Height—Springs Inflated, 3918 mm (154.25 in.)

A - Cab Height—Springs Deflated, 3810 mm (150.0 in.)

B - Bottom of Ladder, 533 mm (21 in.)

C - Under Frame Clearance, 1448 mm (57.0 in.)

D - First Platform Step, 2013 mm (79.25 in.)

E - Second Platform Step, 2235 mm (88.0 in.)

F - Tank Lid Opening, 3492 mm (137.5 in.)

G - Highest Point on Boom In Raised Position— 3886 mm (153.0 in.)

H - Wheelbase, 4300 mm (169.3 in.)

I - Tire Center-to-Rearmost Boom Point, 2642 mm (104.0 in.)

J - Front of Machine-to-Rear of Rear Tire, 7353 mm (289.5 in.)

K - Front of Machine-to-Rearmost Boom Point, 9055 mm, (356.5 in.)

L - Boom Tip-to-Rearmost Boom Point—36.6 m (120 ft.) Boom Folded , 10795 mm (425 in.)
