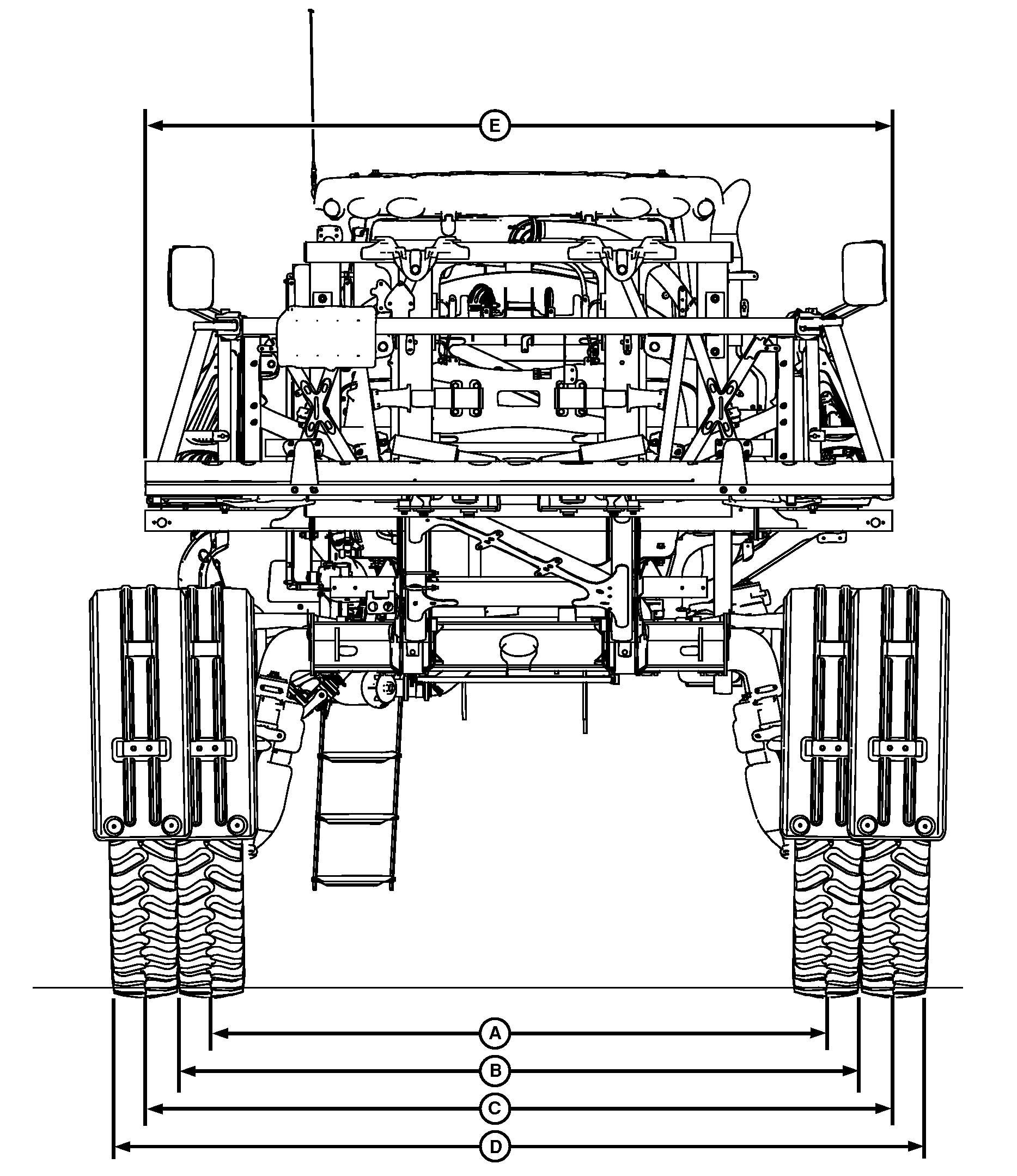

Dimensions—All Machines

N103397
N103397-UN-19APR13

A - Narrowest Tread Setting, 3048 mm (120 in.)

B - Widest Point on Wheels at Narrow Setting (planetary hub), 3493 mm (137.5 in.)1

C - Widest Tread Setting, 4064 mm (160 in.)

D - Widest Point on Wheels at Widest Setting (planetary hub), 4860 mm (177.5 in.)1

E - Boom Width—Boom Folded, 3658 mm (144 in.)

1 Equipped with standard tires.
