Prepare Machine for Transport on Semi-Tractor Trailer

  1. CAUTION: Suspension linkages can cause injury to you or others from movement when inflating or deflating air springs. Keep hands and body away from suspension linkage.

    N104344
    N104344-UN-24JUN13

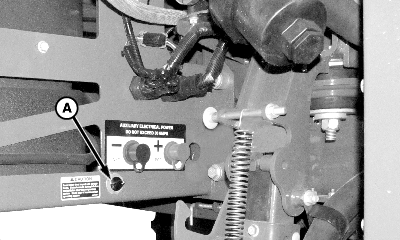

    A - Dump Valve

    Empty solution tank and rinse tank.


  2. Deflate front and rear suspension air springs using dump valve (A).

  3. Set wheels at 3048 mm (120 in.) tread setting.

  4. IMPORTANT: Do NOT tie boom wings to transport trailer.

    N101646
    N101646-UN-17JAN13

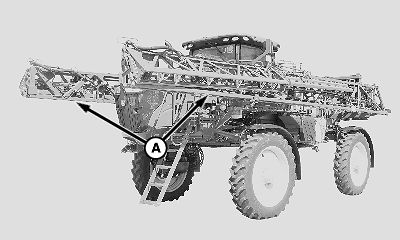

    A - Outer/Breakaway Boom Sections

    Tie outer/breakaway boom sections (A) to inner boom sections on each side of machine.


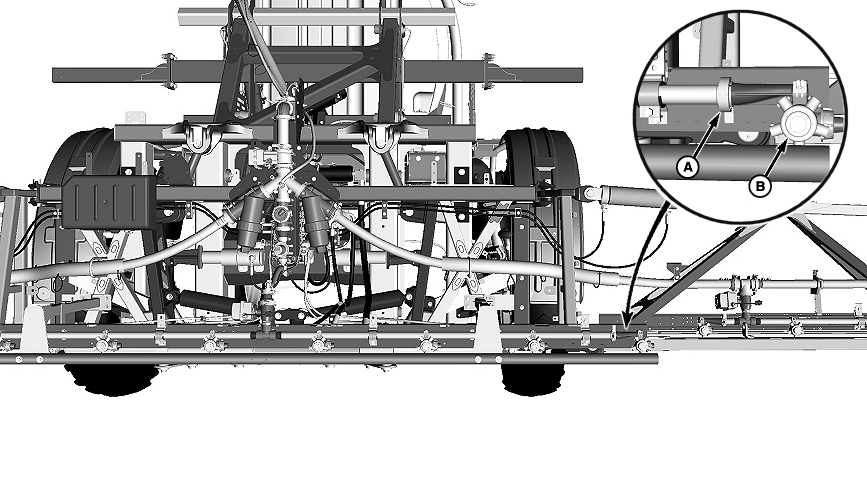

  5. N104345
    N104345-UN-24JUN13

    N103850
    N103850-UN-15MAY13

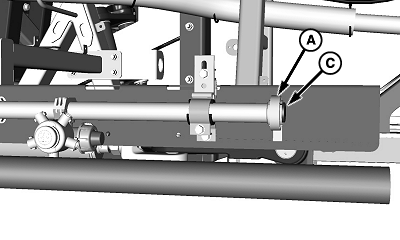

    A - Clamp

    B - Right-Hand Aspirator/Nozzle Body Assembly

    C - Cap

    Loosen clamp (A).


  6. Remove and retain right-hand aspirator/nozzle body assembly (B).

    NOTE: Store aspirator/nozzle body assembly in left-hand storage compartment.

    Verify assembly is installed to boom before machine returns to operation.

  7. Install cap (C) and tighten clamp.

  8. Drive machine onto trailer or truck.

  9. N76791
    N76791-UN-22JUN07

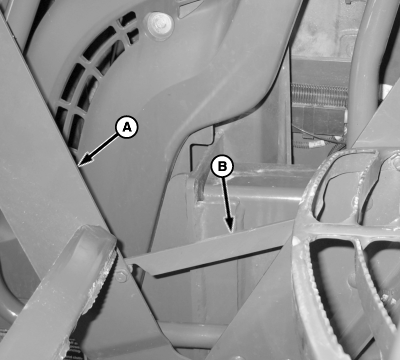

    A - Ladder

    B - Strap

    Get down from machine and raise lower portion of ladder (A) into transport position. Retain with hook strap (B) as shown.
