Front Console

N93781-UN-17SEP12

N93782-UN-17SEP12

N103862-UN-30MAY13

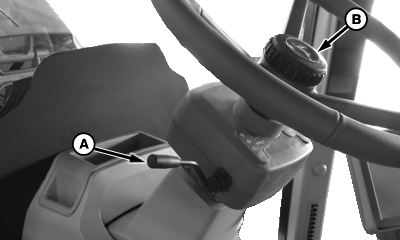

A - Turn Signal Lever, Dimmer Switch, Horn, Flash-To-Pass

B - Steering Wheel Telescope Release

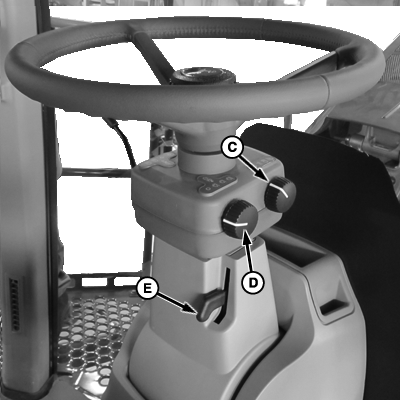

C - Light Switch

D - Wiper Adjust Switch

E - Steering Wheel Tilt Adjust

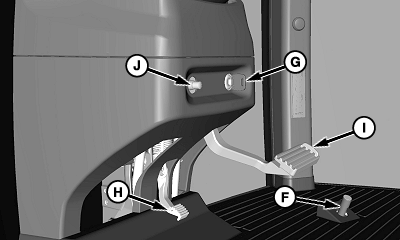

F - Boom Fold Mode Switch

G - Key Switch

H - Steering Column Foot Release

I - Brake Pedal

J - Ether Injection Button—If Equipped
