Control Air Flow

1.
   N93785-UN-17SEP12


   N93786-UN-17SEP12


   N93787-UN-17SEP12

   A - Cab and Floor Switch

   B - Defrost, Floor, and Cab Switch

   C - Defrost and Floor Switch

   D - Defrost Switch

   E - Floor Vents

   F - Defrost Vent

   G - Roof Vents

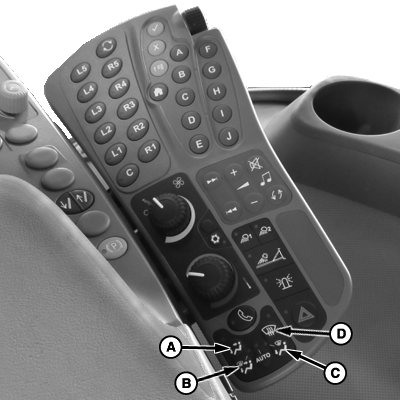

   Using buttons shown direct air flow between cab, floor vents (A), defrost, floor, cab (B), defrost, floor (C) and defrost (D) .

---

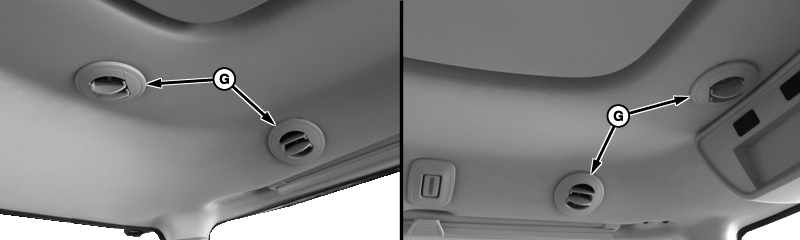

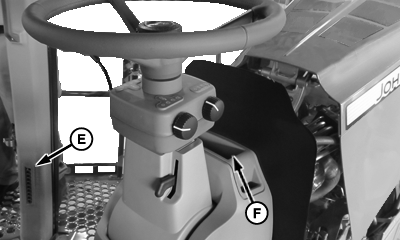

2. Direct floor vent (E) and roof vents (G) as needed.
