Control Temperature (Machines without ClimaTrak System)

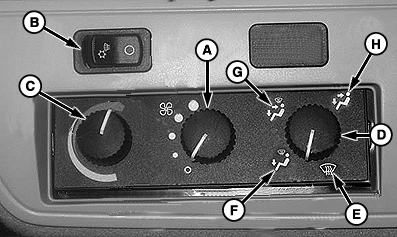

N102398-UN-12FEB13

A - Blower Knob

B - Defroster/AC Switch

C - Temperature Knob

D - Air Flow Knob

E - Defroster Position

F - Floor/Defroster Position

G - Floor/Cab/Defroster Position

H - Floor/Cab Position

Blower knob (A) and defroster/air conditioning switch (B) must be in an ON position before the defroster/air conditioning system will operate.

Temperature knob (C) controls the heater and defroster/air conditioner temperature.

Use air flow knob (D) to select between defroster, floor/defroster, floor/cab/defroster or floor/cab positions (E—F).
