Drain and Flush Diesel Exhaust Fluid (DEF) Tank

1. CAUTION:

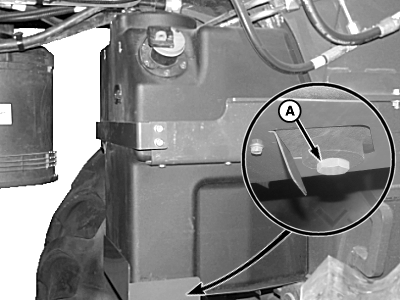

   N109076-UN-04FEB14

   A - Drain Plug

   Diesel Exhaust Fluid (DEF) contains urea. Do not get fluid in eyes. In case of fluid contact with eyes, immediately flush eyes with large amounts of water for a minimum of 15 minutes. In event fluid is ingested, contact a physician immediately. Reference Materials Safety Data Sheet (MSDS) for additional information.

   NOTE: DEF tank capacity is 60.5 L (16 gal.).

   Remove drain plug (A), catch DEF in a suitable container.

---




2. Rinse tank using ONLY distilled water.

3. Reinstall drain plug.

4. Fill tank.

5. Test DEF concentration. (See Testing Diesel Exhaust Fluid (DEF) in Fuels, Lubricants and Coolants section of this manual.)

IMPORTANT: If system fails to operate properly after flushing contact your John Deere dealer for further service.
