Replace Wheel Retraction Switch—23-Row Machines ONLY

  1. N87074
    N87074-UN-21OCT09

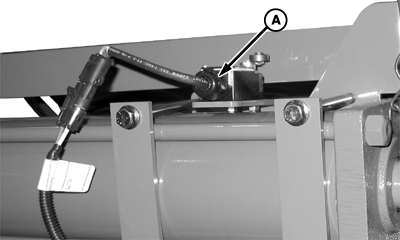

    A - Wheel Retraction Switch

    Disconnect wiring harness from switch.


  2. Remove hardware and switch (A). Retain hardware.

  3. NOTE: Switch is shipped with lever positioned off-center. Lever must be IN-LINE with switch.

    N76836
    N76836-UN-09JUL07

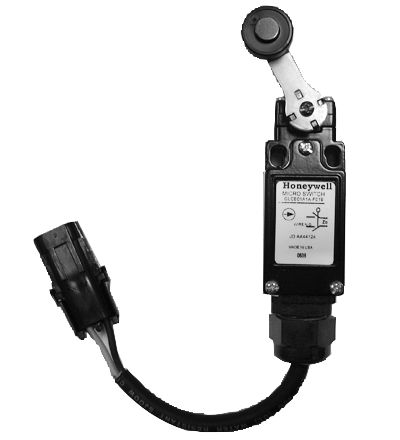

    Lever Off-Center

    N76837
    N76837-UN-09JUL07

    N76838
    N76838-UN-09JUL07

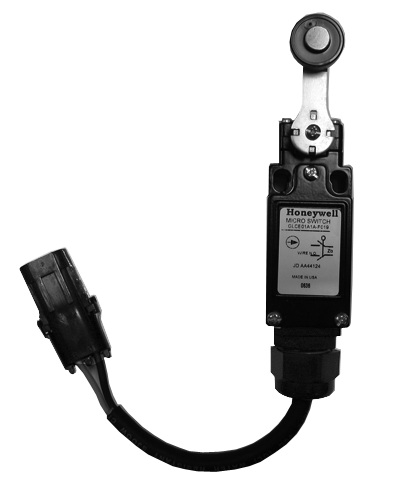

    Lever In-Line

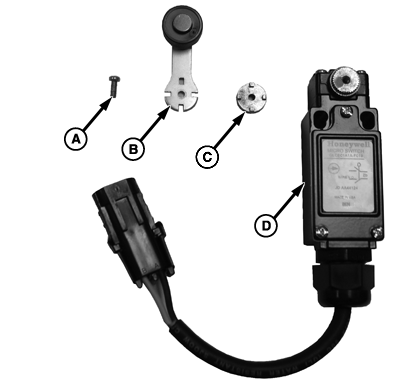

    A - Screw

    B - Lever

    C - Hub

    D - Switch

    Remove parts (A—C) from switch (D).


  4. Reassemble parts with lever IN-LINEwith switch. Tighten screw.

  5. N87074
    N87074-UN-21OCT09

    A - Switch

    Install new switch (A) to bracket using existing hardware.


  6. Connect wiring harness.

KB78086,0000955-19-20120111
