If performing bleed procedure on machines running
different than 1800 rpm, bleed rate times MUST be adjusted to a 113
Lpm (30 gpm) per minute rate. Example: If tractor is running at 57
Lpm (15 gpm), then double all bleed times.
NOTE: See TROUBLESHOOTING section if proper responses are not
observed during bleed procedure.
-
CAUTION: Insure cylinders are supported firmly with wood block
before bleeding cylinders. Wire could also be used to retain wheel
module cylinders. Failure to do this may result in cylinder falling
and causing serious injury to you or others.
Support wing-fold cylinders.
-

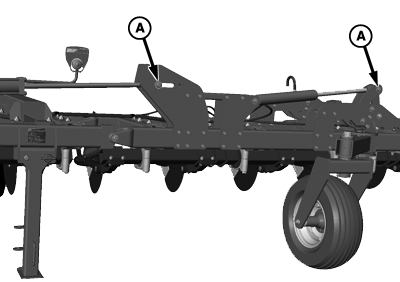

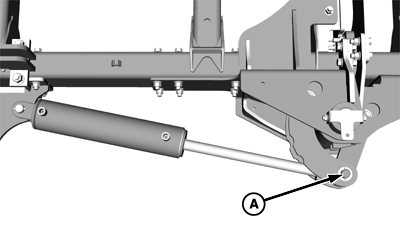

Remove and retain wing-fold cylinder rod end hardware (A).
-
IMPORTANT: 23-ROW MACHINE— If replacing a cylinder on
one side, the matching cylinder on the other side MUST be unpinned
also. This will ensure all the air is removed during the bleed procedure.
Support cylinders with wood block.
-
Repeat process on all wing-fold cylinders.
-
Verify tractor is full of hydraulic oil.
-
Run tractor to 1800 rpm.
-
Fully extend and retract all cylinders at least two times, maintaining
hydraulic pressure at full extension for at least 30 seconds.
-
Extend cylinders one more time, maintaining pressure at full
extension for one minute.
-

N78559-UN-12NOV07

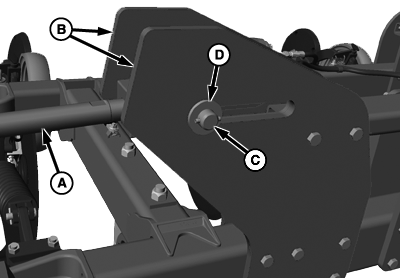

Main Frame Wing-Fold Cylinder Rod
A - Rod End
B - Wing-Fold Plates
C - Drilled Pin 1-1/4 x 7.2 in.
D - Washer, 1-9/32 x 2-3/8 x 1/4 in. (2 Used)
Attach cylinder rod end (A) between wing-fold plates (B)
using 1-1/4 x 7.2 in. drilled pin (C), 1-9/32 x 2-3/8 x 1/4 in. washers
(D) against outside of swing plates and 21/64 x 1-3/4 in. spring pins.
Repeat process on other cylinder.
-

N78560-UN-12NOV07

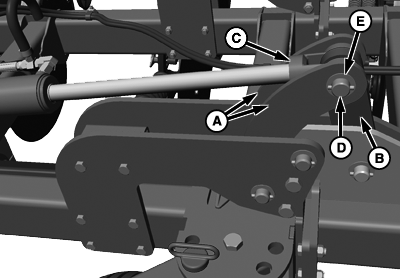

Wing Frame Wing-Fold Cylinder Rod
A - Linkage Arms
B - Center Linkage Plate
C - Clevis
D - Drilled Pin 1-1/4 x 5.3 in.
E - Washer, 1.28 x 2 x 0.06 in. (2 Used)
Attach cylinder rod end between linkage arms (A), with center
linkage plate (B) between clevis (C) using 1-1/4 x 5.3 in. drilled
pin (D), 1.28 x 2 x 0.06 in. washers (E) against outside of linkage
arms and 21/64 x 1-3/4 in. spring pins. Repeat process on other cylinder.
-

N85339-UN-06JUL09

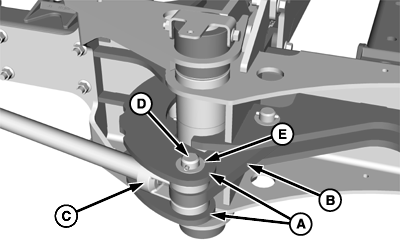

Front Fold Cylinder—23-Row Machine Only
A - Linkage Arms
B - Center Linkage Plate
C - Clevis
D - Drilled Pin 1-1/4 x 5.3 in.
E - Washer, 1.28 x 2 x 0.060 in. (2 Used)
Attach cylinder rod end between linkage arms (A), with center
linkage plate (B) between clevis (C) using 1-1/4 x 5.3 in. drilled
pin (D), 1.28 x 2 x 0.060 in. washers (E) against outside of linkage
arms and 21/64 x 1-3/4 in. spring pins. Repeat process on other cylinder.
-
IMPORTANT: If an oil leak is found during bleed procedure, stop
oil leak then restart procedure.
Extend cylinders and keep in continuous flow for 2 minutes.
-
IMPORTANT: After machine is folded, confirm that cylinders ARE
NOT UNDER LOAD by moving cylinders side-to-side. If under load, adjust
as required.
Adjust wing-fold cylinder rods as required after folding machine
to verify wings are NOT UNDER LOAD.
