Adjust Closing Wheel Down Force

N90937
N90937-UN-11JAN11

N90938
N90938-UN-11JAN11

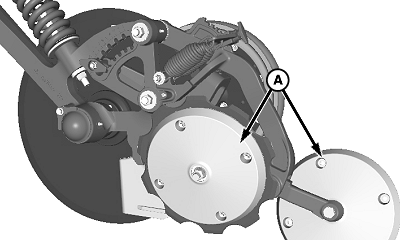

A - Closing Wheel

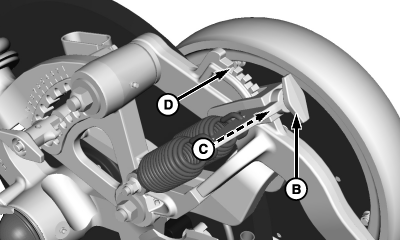

B - Adjusting Spring

C - Heavy Down Force

D - Light Down Force

When properly adjusted, closing wheels (A) pinch the furrow closed.

Place closing wheel adjustment spring (B) in one-of-five positions (C—D), which best suits the soil type and closes furrow without compacting soil.

HEAVY DOWN FORCE (C)—Heavy or tight soil.

LIGHT DOWN FORCE (D)—Light, loose, or sandy soil.

OUO6435,00004C9-19-20110111
