Base Cutter Automatic Control

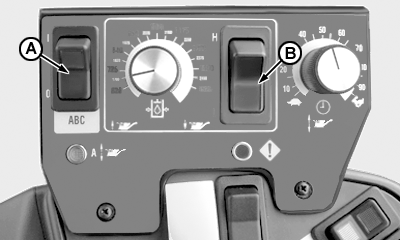

Switches
| Pressure Classification |
| Low |
620-1525 psi |
| High |
1700-2400 psi |
A-ON/OFF switch for base cutter automatic control Switch light comes on when system is turned ON.
B-HIGH/LOW pressure variation switch.
|
|
|
|
OU64006,0000136 -19-10MAY06-1/3
|

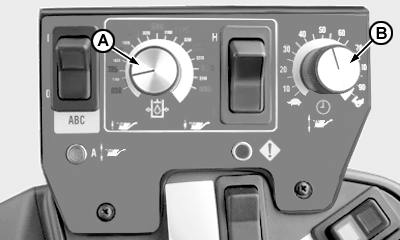

Adjustment Knobs
A-Base cutter cutting pressure adjustment knob This knob lets the system know the pressure needs to be maintained.
B-Sensitivity adjustment knob. This knob adjusts the response time to base cutter pressure changes.
|
|
|
|
OU64006,0000136 -19-10MAY06-2/3
|

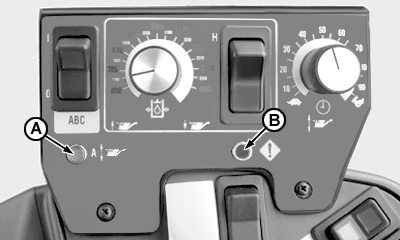

Indicator Lights
A-Full-beam indicator light active. This light comes on when the base cutter automatic control is active.
B-Error indicator light. This indicator light comes on when chopper pressure increases or when system faults occur.
|
|
|
|
OU64006,0000136 -19-10MAY06-3/3
|
|
