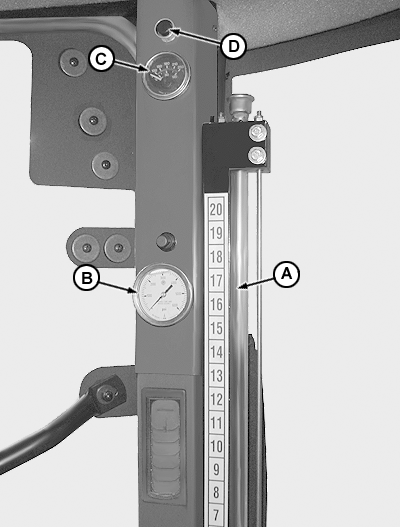

Left-Hand Column Control PanelBase Cutter Height Gauge -This gauge shows how high the cane is being cut in relation to the ground. Base Cutter Pressure Gauge -This gauge indicates the working pressure in the base cutter circuit. The circuit pressure increases with the load. For example, the gauge will indicate an increase in pressure when cutting into dirt. Hydraulic Oil Temperature Gauge -Shows hydraulic oil temperature. If the oil temperature rises above 80° C (180° F), reduce load until temperature drops. Hydraulic Oil Level Low Indicator Light - This buzzer/light will stay on when hydraulic oil level is low.
|
|
OU64006,0000150 -19-16MAY06-1/1 |
