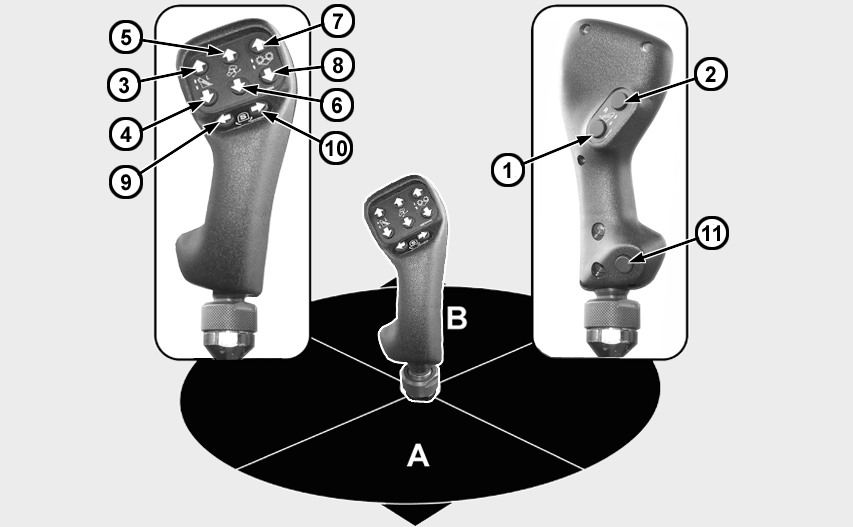

A-Raises Base Cutter
B-Lowers Base Cutter
1-Lowers Right Crop Divider
2-Raises Right Crop Divider

3-Raises Left Crop Divider
4-Lowers Left Crop Divider
5-Bin Flap In
6-Bin Flap Out

7-Raises Topper
8-Lowers Topper
9-Rotates Secondary Extractor Hood Left

10-Rotates Secondary Extractor Hood Right
11-Horn

OU64006,0000172 -19-19MAY06-1/6

1-Lowers Right Crop Divider-When the button is depressed, the right crop divider is lowered. When the button is centered, the crop divider will stop at the last position to which it was moved.
2-Raises Right Crop Divider-When the button is depressed, the right crop divider is raised. When the button is centered, the crop divider will stop at the last position to which it was moved.

OU64006,0000172 -19-19MAY06-2/6

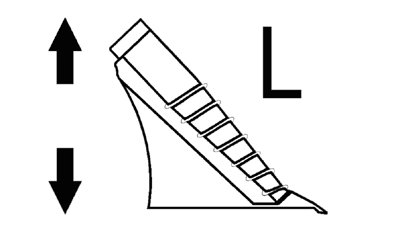

3-Raises Left Crop Divider-When the button is depressed, the left crop divider is raised. When the button is centered, the crop divider will stop at the last position to which it was moved.
4-Lowers Left Crop Divider-When the button is depressed, the left crop divider is lowered. When the button is released, the crop divider will stop at the last position to which it was moved.

OU64006,0000172 -19-19MAY06-3/6

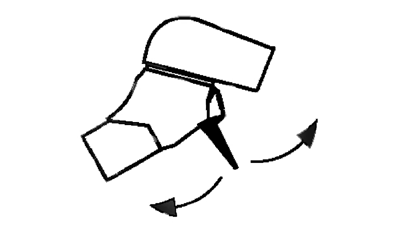

5-Push button to move the bin flap in.
6-Push button to move the bin flap out.

OU64006,0000172 -19-19MAY06-4/6

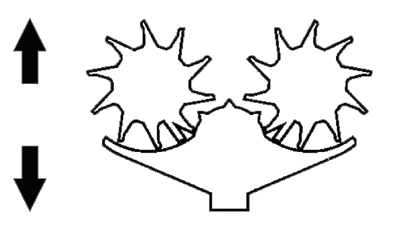

7-When this switch is depressed, the topper is raised.
8-When this switch is depressed, the topper is lowered.

OU64006,0000172 -19-19MAY06-5/6

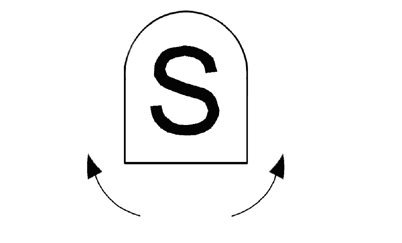

9-Press the button to rotate the secondary extractor hood to the left.
10-Press the button to rotate the secondary extractor hood to the right.

OU64006,0000172 -19-19MAY06-6/6
