Secondary Extractor Fan

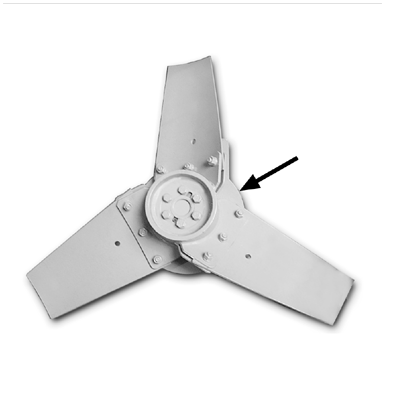

The secondary extractor fan consists of a hub with three curved blades fastened with bolts. The secondary fan is 864 mm (34.in) in diameter. The hub is bolted to a flanged shaft, which is mounted on two bearings and driven by a motor. The secondary extractor is driven by gear motors.
