OMNW00271: John Deere 3510 Sugar Cane Harvester (060037- ), Block File: OU64006_00001AB_19_19MAY06.htm

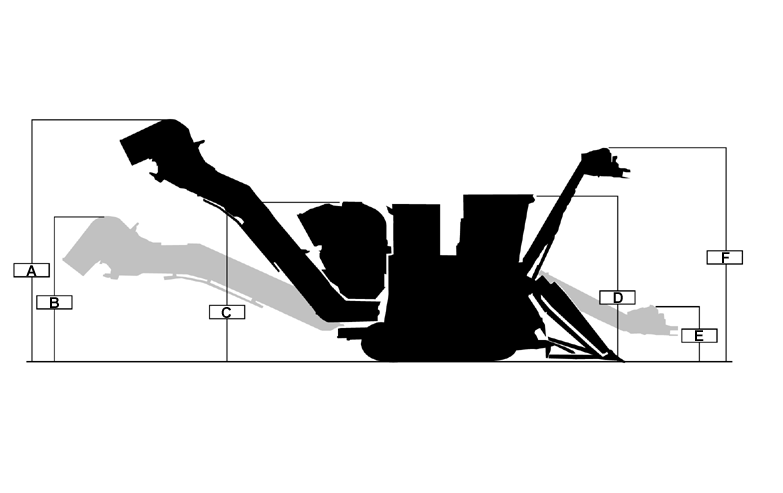

High Capacity Elevator Direct Drive 5 ft Primary Extractor (Track)

NW270920

A-5892 mm (232 in.)
B-3530 mm (139 in.)

C-3869 mm (152 in.)
D-4038 mm (159 in.)

E-1320 mm (52 in.)

F-5156 mm (203 in.)

OU64006,00001AB -19-19MAY06-1/1
