Cleaning Radiators

IMPORTANT: Shut off engine and remove starter key before cleaning rotary screen.

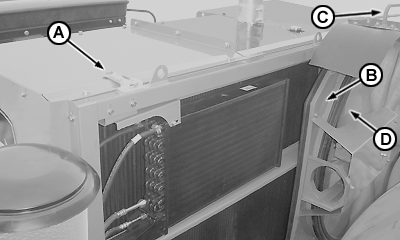

1. Release lock (A) and turn rotary screen assembly (B) clockwise through hand grip (C).

CAUTION: Be careful when turning the rotary screen assembly (B), the assembly is heavy and could cause accidents.

2. Clean rotary screen (D) with a brush and compressed air when dirt and chaff build up on or behind the screen.

3. Clean the radiators.

4. To clean these components with compressed air, blow from inside outwards.

IMPORTANT: When using high pressure air or water, be careful of fin damage to coolers. Straighten bent fins. Bent fins will decrease cooler performance.

OU90500,00001B8 -19-11MAY06-1/1
