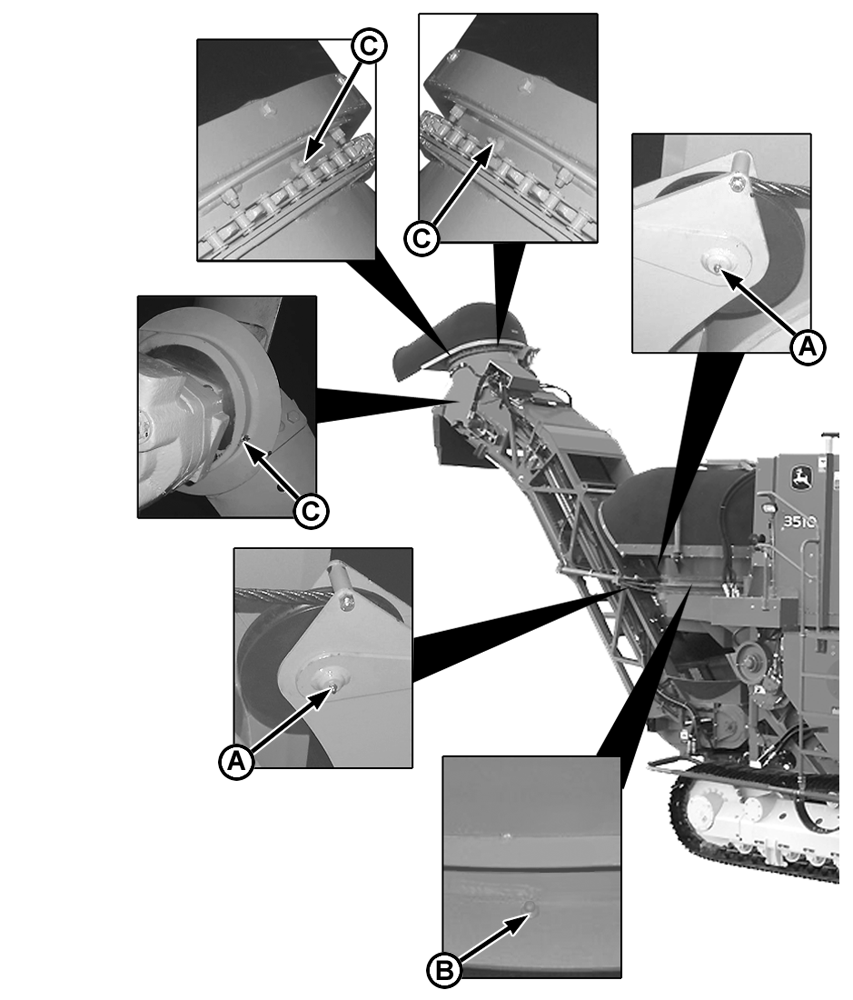

Extractors, Primary and Secondary

NW278460

A-Primary extractor
(2 fittings)

B-Support Ring (5 fittings)

C-Secondary extractor
(3 fittings)

OU92976,000008D -19-31AUG06-1/1
