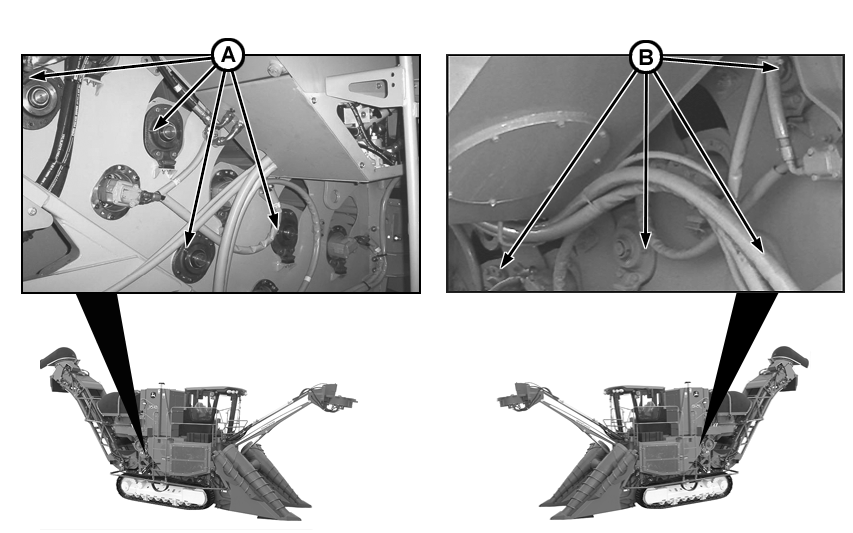

Feeder Rolls (Both Sides of Machine)

NW278560


A-Feeder rolls (right-hand side-4 fittings)

B-Feeder rolls (left-hand side-4 fittings)



NOTE: Lubricate feed rollers with only 3 shots every 50 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump or reduce pneumatic pump pressure to 30 pounds.

OU92976,0000091 -19-31AUG06-1/1
