Check Engine Coolant Level

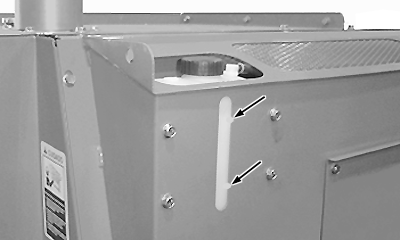

1. The overflow reservoir is located on the upper right-hand side of the harvester.

2. If coolant level does not appear within the marked area of the sight gauge, remove radiator cap and add fluid until it reaches the bottom of the radiator neck.

3. Add coolant to expansion tank as needed.

NW271650

OU92976,00000A6 -19-16MAY06-1/1
