Tilting the Cab

IMPORTANT: Before leaving cab, close and lock right-hand side window. Secure or remove all loose items to avoid any damage that those items might cause while cab is being lifted. Lock cab door upon exiting. Make sure the topper boom is lowered and that safety stops are in place.

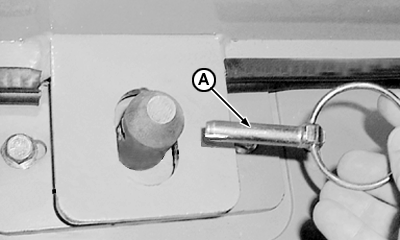

1. Remove pin (A) from rear part of cab.

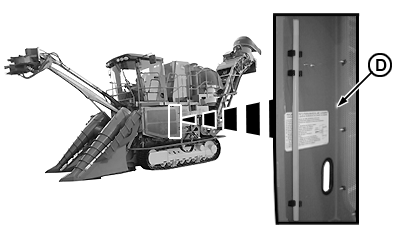

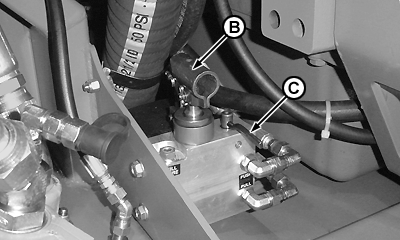

2. Open Left-hand (Driver's Side) engine compartment door. Locate pump handle (D) inside of left-hand door. Insert pump handle into pump (B).

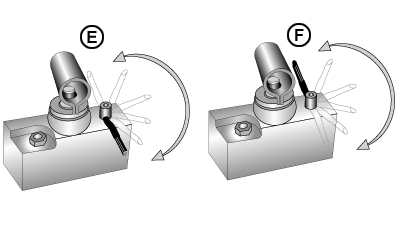

3. Turn tilt control lever (C) to position (E). Stroke pump handle to tilt the cab. Be sure to completely tilt the cab until the cab tilt lock falls into place.

causym CAUTION: Do not leave the cab partially tilted.

NW271890
NW271870
NW271880

Lever location

NW272020

OU92976,00000A8 -19-19MAY06-1/2

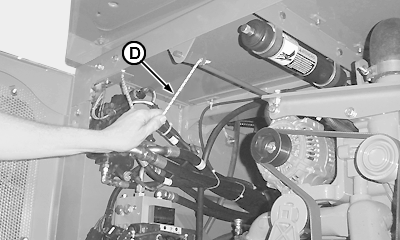

4. To return cab to its seated position, push the tilt control lever (C) to position (F). Insert pump handle into pump (B). Pull cab tilt lock release cord (D) and use the pump until cab is completely seated.

5. Reinstall pin (A) to rear part of cab.
