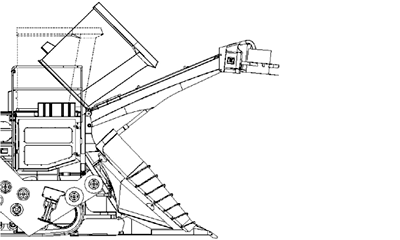

Tilting the Cab

The entire cab tilts forward, providing access to the engine for maintenance and repair by a qualified technician. The cab pivots at the front, raised by a single hydraulic cylinder. Make sure there are no people near the machine. (See Service Section for tilting the cab procedure).

OU92976,00000A9 -19-22MAY06-1/1
