Prefill Fuel Filters


A-Filler Cup
B-Fuel Filter Element

RG11750

T803324,0000569 -19-10FEB05-1/2

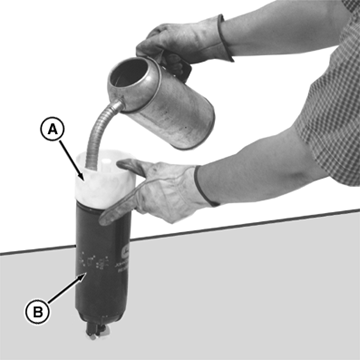

1. Using the filter cup (A), fill the new fuel filter elements with fuel and drain excess fuel into suitable container.

NOTE: The primary and secondary fuel filter use different filter cups. Use correct fill cup on filters to ensure fuel is properly filtered during pre-fill.

IMPORTANT: Avoid fuel system contamination. Do not pour fuel directly into filter without filler cup. Injection pump could seize.

NOTE: Pour fuel slowly to allow fuel to flow into the element. This will eliminate the need to dump out excess fuel when the element is full.

2. Remove filler cup.

3. Lubricate packing with SAE 30 and install filters onto base. Tighten half a turn after seal contacts base.

4. Connect water-in-fuel sensor connector.

NOTE: Connector may have a cap installed that must be removed.

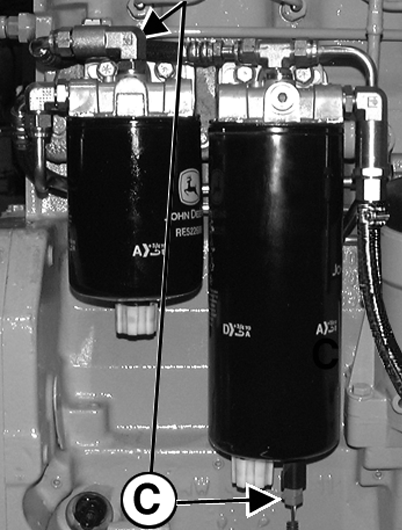

5. Secure wiring harnesses (C) with tie bands to protect from rubbing sharp objects.
