Clean Pre-Filter Screen

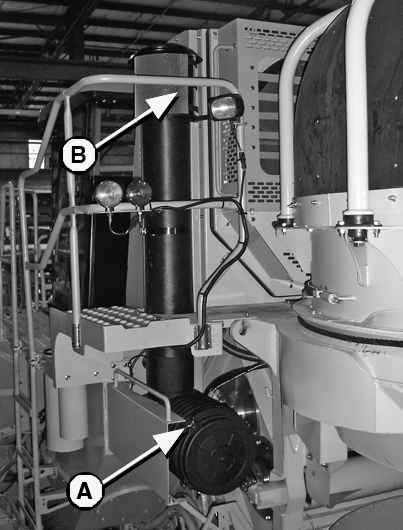

1. Remove and unroll the outer screen (B). Check for tears or breaks. If screen is usable, remove as much dirt and dust as possible by either blowing with compressed air or by shaking it.

2. Replace outer screen as shown.

CM053510031

T803324,0000571 -19-10FEB05-1/1
