Adding Hydraulic Oil

1. Park harvester on level surface.

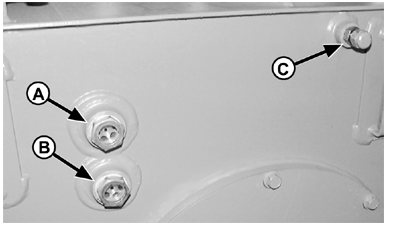

2. When oil is cold, oil level must be at middle of sight gauge (A). Add oil when oil level is at or below sight gauge (B).

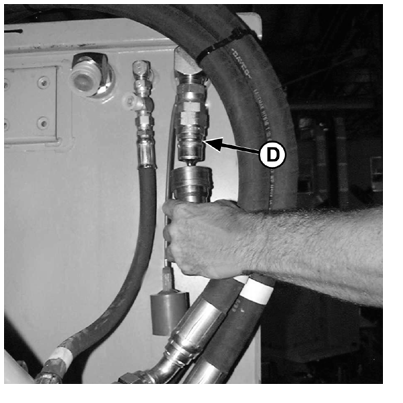

3. Remove protective cover and clean fitting (D) on rear of tank. Clean the quick connect on the hand pump hose, and attach it to the fitting on tank.

4. Remove the vent cap (C) on side of the hydraulic tank.

5. Pump the oil into the tank until oil level reaches the middle of sight gauge (A).

6. Replace vent cap (C).

7. Remove the quick connect and replace protective cover over fitting (D).
