Check Engine Oil Level

Do the following before starting the engine for the first time each day:

IMPORTANT: Do not add makeup oil until the oil level is BELOW the add mark.

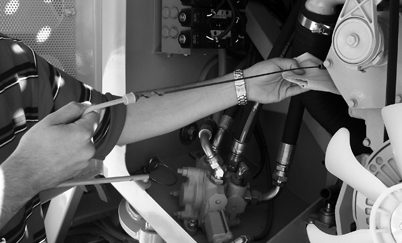

1. With harvester cab platform in the level position check oil level with dipstick. Add recommended oil if necessary.

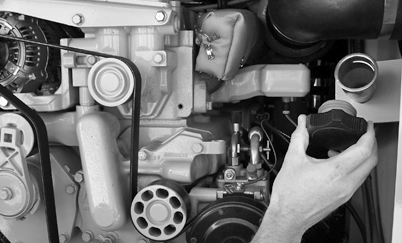

2. Oil should be added through the filler tube on the left side of harvester.
3. Replace filler cap and dipstick.

IMPORTANT: DO NOT fill above the top mark on the dipstick. Oil levels anywhere within the crosshatch are considered to be in the acceptable operating range.

AG,T803584,125 -19-19MAY09-1/1
