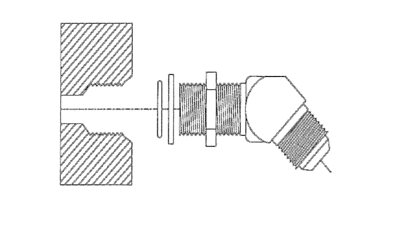

Angled O-Ring Boss
1.
Remove the locknut and backup washer completely from the "head-end" of the fitting.
2.
Screw the fitting into the threaded boss until the backup washer comes into contact with the face of the boss.
3.
Turn the fitting "head-end" counterclockwise to the proper index (a maximum of one turn).
4.
Hold the fitting "head-end" with a wrench and tighten the locknut until the backup washer bottoms out. Be careful when installing fittings. Do Not twist hoses when tightening.
|
