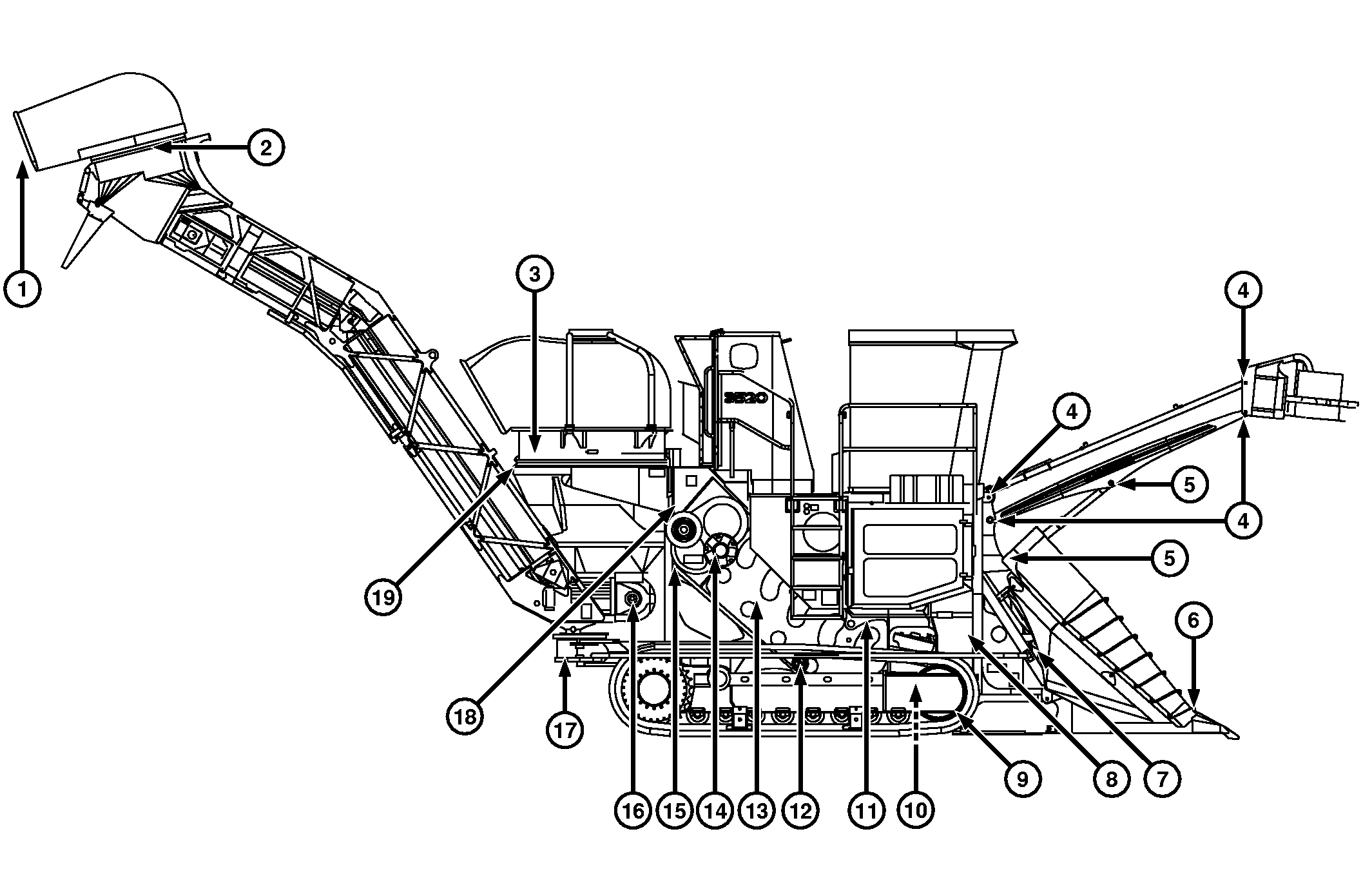

1-Secondary Extractor Mounting Bearing - 1 Fitting
2-Secondary Extractor Hood Ring - 2 Fittings
3-Primary Extractor Hood Ring - 5 Fittings
4-Topper Upper and Lower Mounting Pins - 4 Fittings
|
5-Topper Lift Cylinder Rod and Butt End - 2 Fittings
6-Scroll Bearings - 2 Fittings
7-Crop Divider Cylinders / Mounting Pins- 10 Fittings
8-TrackRod and Butt End of Cylinders - 4 Fittings
9-Wheel Struts - 10 Fittings
|
10-Basecutter Leg
11-Wheel - Steering Cylinder Pins - 4 Fittings
12-Feed Roller Bearing - 9 Fittings
13-Feed Roller Cradle Pins - 10 Fittings
14-Chopper Rollers - 2 Fittings
|
15-Sill Roller
16-Tail Shaft Bearings - 2 Fittings
17-Swing Table - 9 Fittings
18-Chopper Curtain Agitator - 1 Fitting
19-Elevator Cable Support Sheave - 2 Fittings
|
