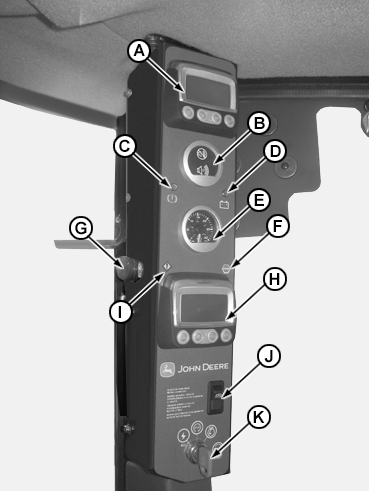

Right-Hand Column Control Panel
A-Upper diagnostic gauge
B-Acoustic alarm
C-Parking brake warning indicator light
D-Low Battery warning indicator light
E-Basecutter pressure gauge
F-Engine stop indicator light
G-Greenstar Ready outlet
H-Lower diagnostic gauge
I-Engine warning indicator light
J-Parking brake switch
K-Ignition key
|
