Check Engine Coolant Level

1. The overflow reservoir is located on the upper left-hand side of the harvester.

2. If coolant level does not appear within the marked area of the sight gauge, remove expansion tank cap and add fluid.

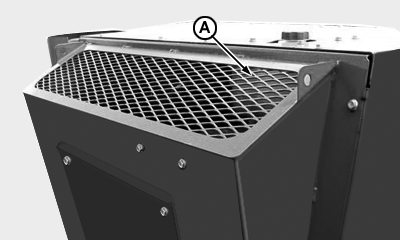

NOTE: The engine coolant level can be verified in (A) position, through the fence.

3. Add coolant to expansion tank as needed.

CQ280157

GB52027,000053D -19-27OCT08-1/1
