Checking Hydraulic Oil Level

IMPORTANT: Starting engine without oil in the hydraulic tank will result in pump damage.

1. Park harvester on level surface. Check oil level.

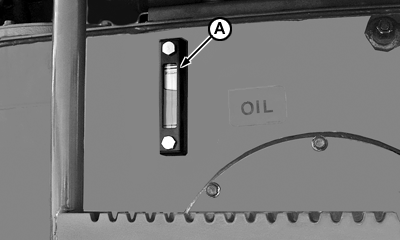

2. When oil is cold, oil level must be at 6 mm (0.25 in.) below of sight gauge top (A).

3. Add oil when oil level is below that position. See "Adding Hydraulic Oil".

NOTE: Platform should be level, elevator in the raised position and the topper all the way down. Allow 30 minutes for oil to level after shutting down the engine.
