Replace Filter

1. Line up filter with seat in housing. Gently push filter inward until the gasket is evenly seated. If the gasket is not perfectly seated, there will not be a good seal.

2. Line up six clamps (A) on the housing cover. Push the cover inward and snap clamps shut.

3. Check all connections and ducts for an air tight fit. All joints, from air cleaner to engine, must be tight. Seal all leaks immediately, they allow dirt to directly enter your engine.

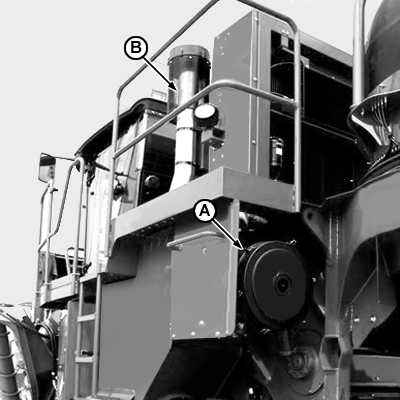

CQ280163

GB52027,0000542 -19-07FEB08-1/1
