Elevator (Both Sides of Machine)

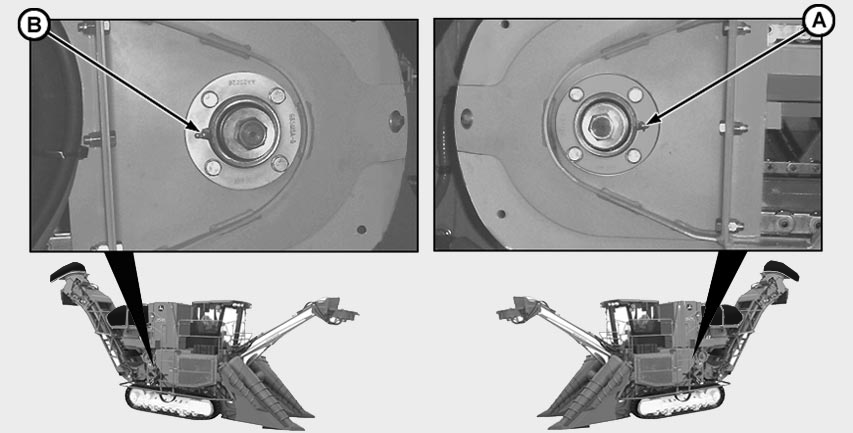

CQ280254


A-Elevator bearing (left-hand side-
1 fitting)

B-Elevator bearing (right-hand side-1 fitting)



NOTE: Lubricate elevator bearings with only 3 shots every 250 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump.

GB52027,0000566 -19-03JUN08-1/1
