OMNW00273: John Deere 3520 Sugar Cane Harvester , Block File: GB52027_0000567_19

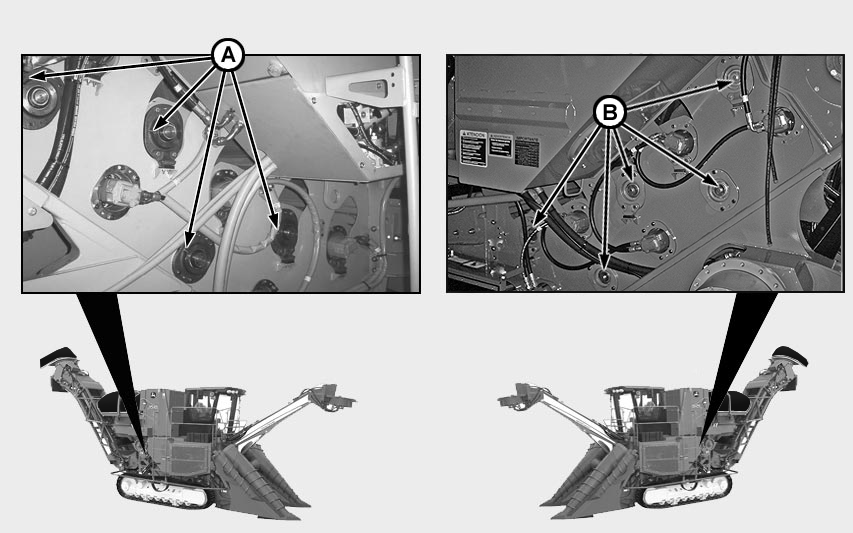

A-Feed Rollers (right-hand side-4 fittings)

B-Feed Rollers (left-hand side-5 fittings)

NOTE: Lubricate feed rollers with only 3 shots every 250 hours, excessive lubrication damages seals, causing premature faults.

Use a manual grease pump.

GB52027,0000567 -19-03NOV08-1/1
