Checking Chopper Gearbox Oil Level

Oil level should be checked every 25 hours. Follow this procedure.

1. Always check fluid level when oil is cold.

2. Park harvester level in order to get the proper reading.

3. Oil level should be at the top of sight gauge (B).

4. Add oil as necessary through filler plug (C).


A-Drain
B-Level gauge
C-Filler plug

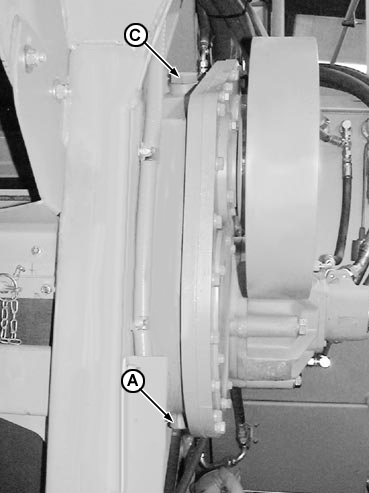

CQ280289
