Checking Crankshaft Vibration Damper

NOTE: This service should be done every 500 hours.

IMPORTANT: Even if they continue to function, replace crankshaft vibration dampers every 4500 hours or 5 years, whichever occurs first; to do so "consult your John Deere dealer".

The engine has dual dampers. Make same checks on each damper.

1. Remove belt (shown removed).

NOTE: Always replace both dampers as a matched set.

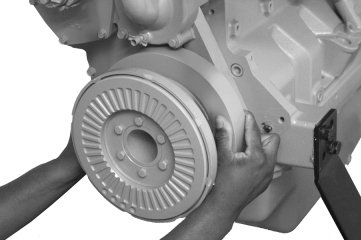

2. Grasp vibration damper with both hands and attempt to turn it in both directions. If rotation is felt, damper is defective and should be replaced.

RG7369

OU64006,0000135 -19-01AUG08-1/2

NOTE: Check the offset on the internal damper. Always replace both dampers as a matched set.

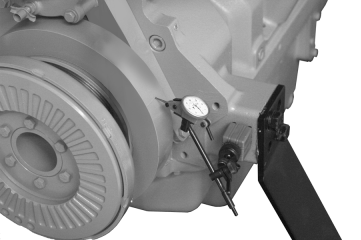

3. Check vibration damper radial runout by positioning a dial indicator (A) so probe contacts damper outer diameter.

4. Rotate crankshaft using JDG820 Flywheel Turning Tool.

5. Note dial indicator reading.

Specification

Damper -Maximum Radial Runout 1.02 mm (0.040 in.)

If offset exceeds specifications, replace vibration damper.
