Assisted Basecutter Control
Switches
| Pressure Classification |
| Low |
620-1525 psi |
| High |
1700-2400 psi |

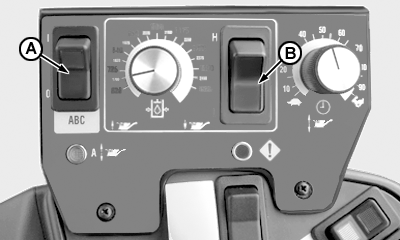

A-ON/OFF switch for Assisted Basecutter Control Switch light comes on when system is turned ON.
B-HIGH/LOW pressure variation switch.
|
|
|
|
OU64006,0000136 -19-20MAY09-1/3
|
Adjustment Knobs

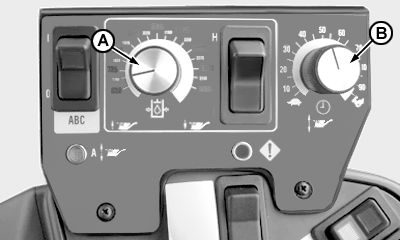

A-Basecutter cutting pressure adjustment knob This knob lets the system know the pressure needs to be maintained.
B-Sensitivity adjustment knob. This knob adjusts the response time to basecutter pressure changes.
|
|
|
|
OU64006,0000136 -19-20MAY09-2/3
|
Indicator Lights

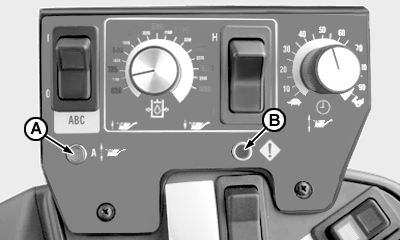

A-Full-beam indicator light active. This light comes on when the Assisted Basecutter Control is active.
B-Error indicator light. This indicator light comes on when system faults occur.
|
|
|
|
