Checking Oil Level in Pump Drive Gearbox

Check level when oil is cold. Visually inspect sight gauge (A) which is located on the right-hand side of the harvester in the engine compartment between the bottom pumps on the pump drive gearbox. Oil level should be within the rectangle. If necessary, remove filler plug (B) and add oil to bring it to the proper level.

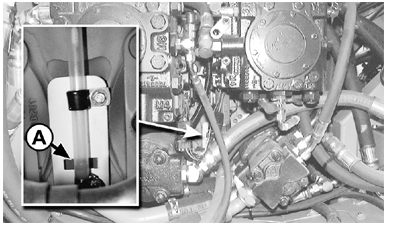

A-Sight Gauge

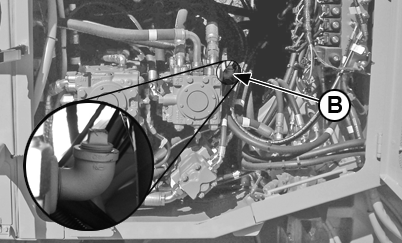

B-Filler Plug
