Replacing Oil in Pump Drive Gearbox

1. Make sure oil is warm before changing.

2. Clean and remove filler plug (B). Unscrew drain hose (C) which is on the right-hand side of the machine underneath the engine compartment. Remove plug and collect oil in a suitable container. Cap and replace.

3. After oil is completely drained, tighten drain hose (C). Dispose of waste oil properly.

4. Fill gearbox to proper level (A). Allow time for oil to settle.

5. Tighten filler plug (B).


B-Filler Plug

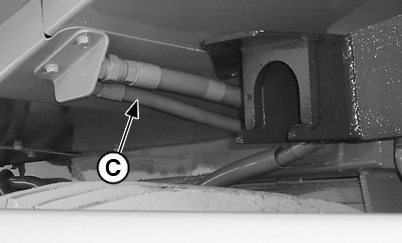

C-Pump Drive Drain Hose
