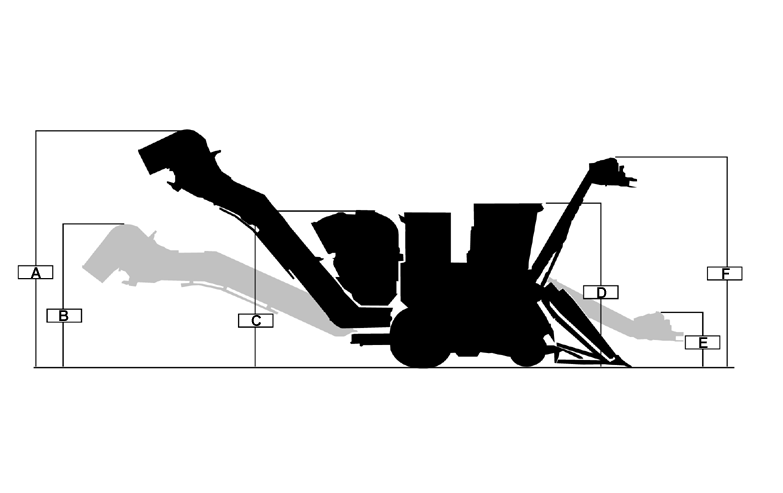

A-5918mm (233 in.)
B-3556 mm (140 in.)

C-3886 mm (153 in.)
D-4064 mm (160 in.)

E-1396 mm (54 in.)

F-5181 mm (204 in.)

All measurements are approximate, with the harvester leveled. The elevator lowers more by raising the front lift cylinders.

OU64006,00001AA -19-19MAY06-1/1
