IMPORTANT:
Always check fluid level when oil is cold.
To check the oil level, do the following:
1.
Park harvester level in order to get the proper basecutter angle.
2.
Check sight gauge (D) to ensure oil level is at the middle of the gauge.
3.

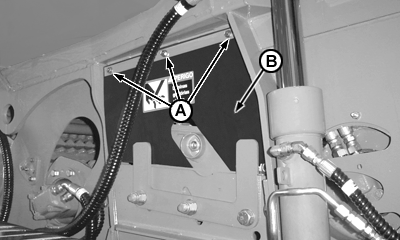

If you need to add oil, access the filler tube by removing the three bolts (A) and rubber side shield (B).
4.
Add oil as necessary.
