Cab Tilt Procedure

Raising the cab

1. Park machine on level surface.

2. Position machine on safety stops.

3. Position topper boom on safety stop.

4. Lower the crop divider completely.

5. Turn the engine OFF.

6. Remove all loose objects from cab.

7. Securely latch window and door.

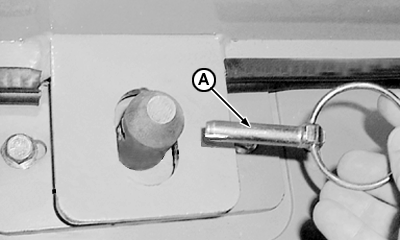

8. Remove pin (A) from rear part of cab.

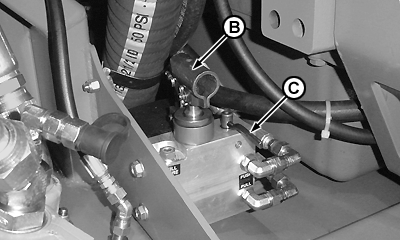

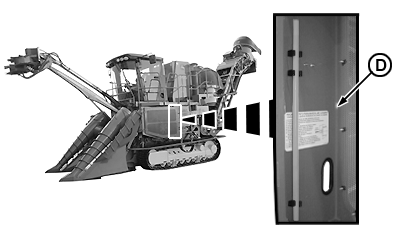

9. Open Left-hand (Driver's Side) engine compartment door. Locate pump handle (D) inside of left-hand door. Insert pump handle into pump (B).

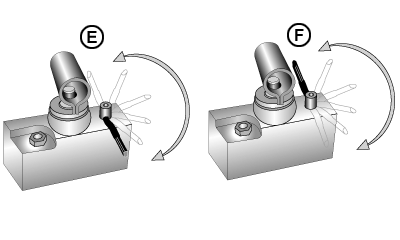

10. Turn tilt control lever (C) to position (E). Stroke pump handle to tilt the cab. Be sure to completely tilt the cab until the cab tilt lock falls into place.

causym CAUTION: Do not leave the cab partially tilted.

Lowering the Cab

1. Ensure area beneath cab is clear of personnel and equipment.

NW271890
NW271870
NW271880

Lever location

NW272020

OU92976,00000A8 -19-19MAY09-1/2

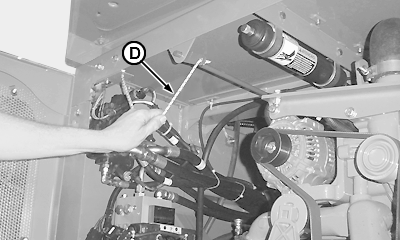

2. To return cab to its seated position, push the tilt control lever (C) to position (F). Insert pump handle into pump (B). Pull cab tilt lock release cord (D) and use the pump until cab is completely seated.

3. Reinstall pin (A) to rear part of cab.

NW270890

OU92976,00000A8 -19-19MAY09-2/2
